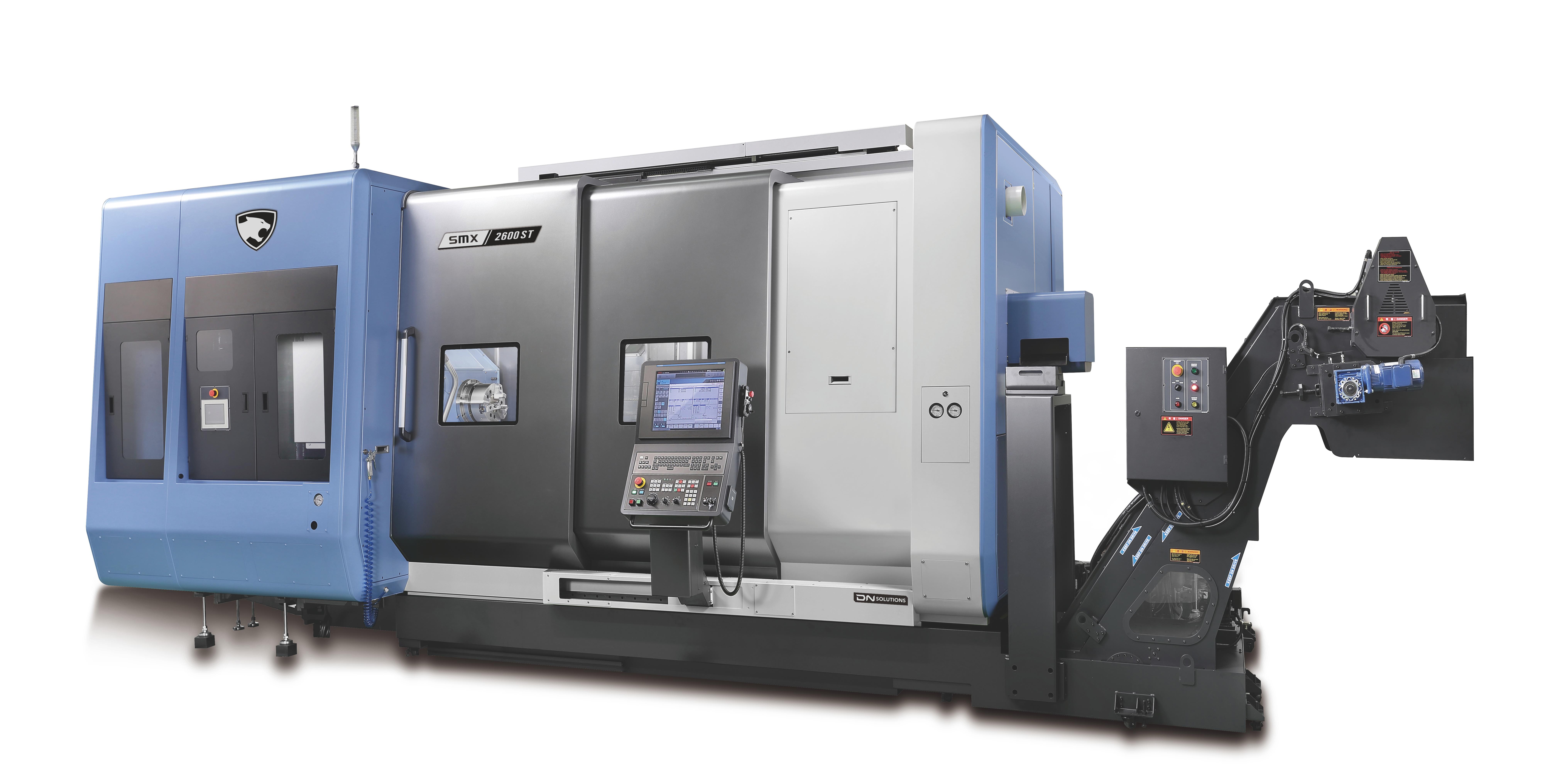

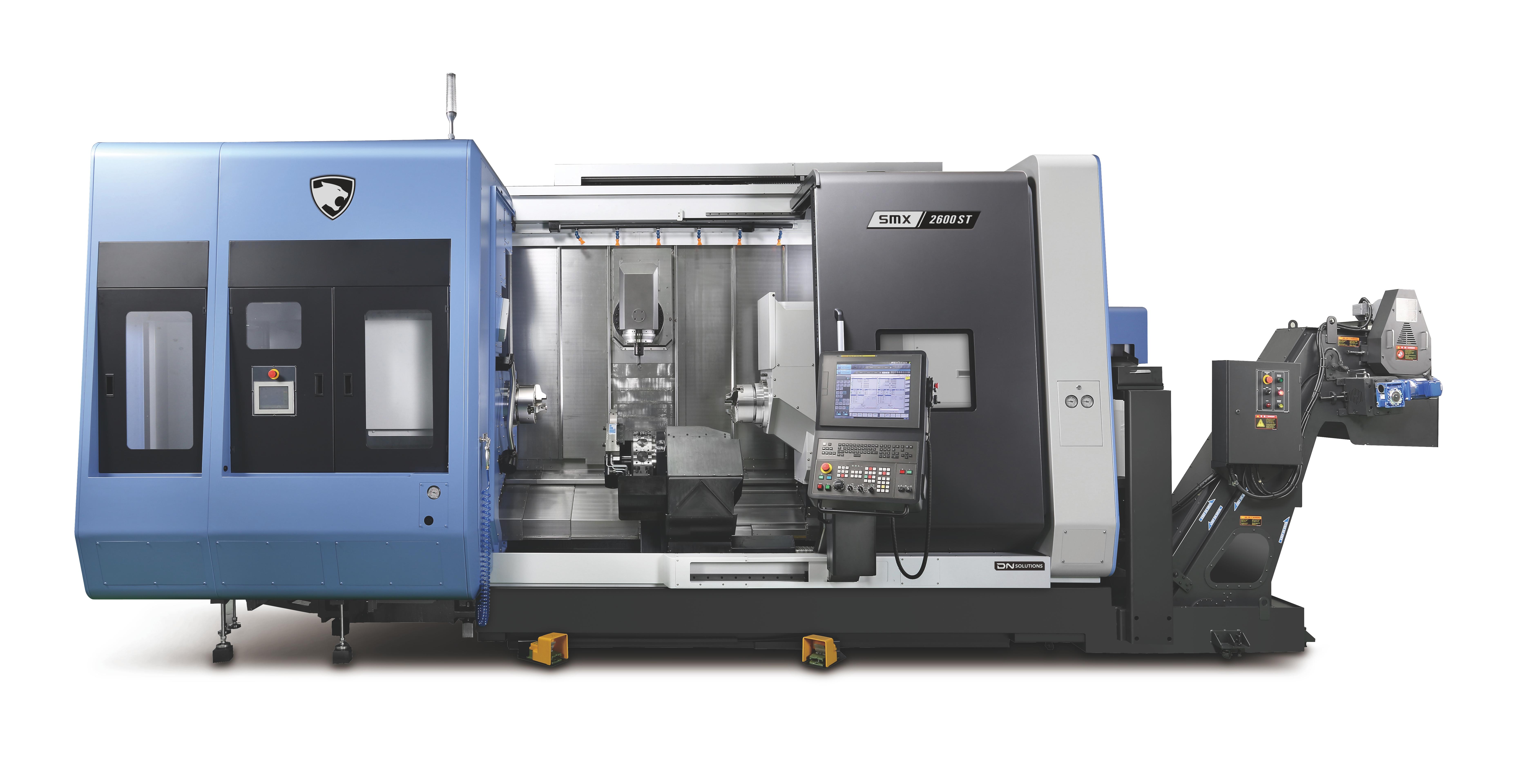

PUMA SMX2600ST
SUPER MULTI-TASKING TURNING CENTER
Highlights
- Travels - X Axis Travel distance (mm): 695
- Travels - Y Axis Travel distance (mm): 300
- Travels - Z Axis Travel distance (mm): 1585
- Chuck size (mm): 255
- Max. Turning Diameter (mm): 660
- Max. Turning Length (mm): 1540
DETAIL1541
https://youtu.be/VLu_5wQyDnk
https://youtu.be/VLu_5wQyDnk
DETAIL1541
https://youtu.be/VLu_5wQyDnk
https://youtu.be/VLu_5wQyDnk
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 695 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 300 |
| Travels - Z Axis Travel distance (mm) | 1585 |
| Travels - X Axis Rapid Traverse (m/min) | 48 |
| Travels - Y Axis Rapid Traverse (m/min) | 36 |
| Travels - Z Axis Rapid Traverse (m/min) | 48 |
Table
| Table Length (mm) | |
|---|---|
| Table Width (mm) | |
| Max. Workpiece weight (kg) | |
| Pallet Size (mm) | |
| Rotary Table Diameter (mm) | |
| Max. Table weight (kg) |
Workpiece capacity
| Max. Workpiece Diameter (mm) | |
|---|---|
| Max. Workpiece Height (mm) | |
| Max. Workpiece weight (kg) |
Tool storage capacity
| Machining center - No. of tool station | 12/40/80/120 |
|---|
Capacity
| Chuck size (mm) | 255 |
|---|---|
| Max. Turning Diameter (mm) | 660 |
| Max. Turning Length (mm) | 1540 |
| Bar Capacity (mm) | 81 |
| Table to spindle nose |
Main spindle
| Main Spindle Max. Speed | 4000 |
|---|---|
| Main Spindle Max. Power | 30 |
| Main Spindle Max. Torque | 724 |
| Tool Taper (ISO) | Capto C6 |

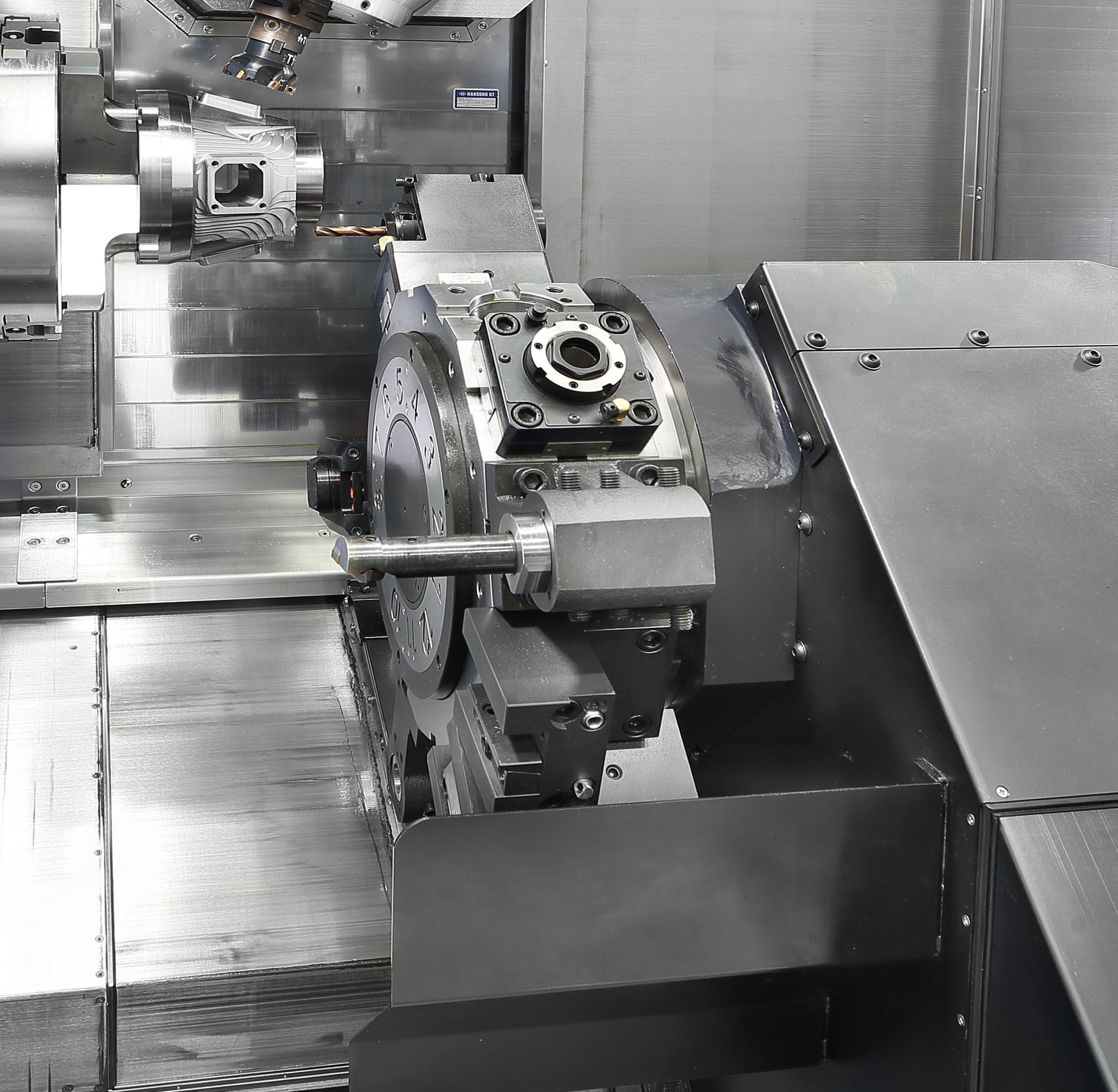

Turret
| Rotary Tool (r/min) | 12000 |
|---|---|
| Turret - No. of tool station | 12/40T |
Dimensions
| Length (mm) | 5790 |
|---|---|
| Height (mm) | 2820 |
| Width (mm) | 3021 |
| Weight (kg) | 18000 |
| Vārds | Lejupielādēt | Faila veids | |
|---|---|---|---|
|
TOOLING SYSTEM-PUMA-SMX-2100-2600-3100-3100B.pdf | 1868 KB | |
|
SMX_2100-2600-3100.pdf | 11601 KB |
